Categorization：Brand Connector

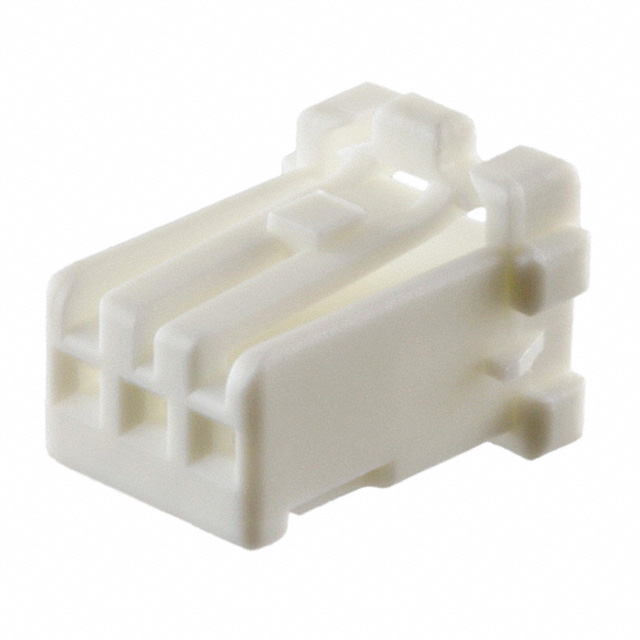

JST connector - Providing product overview for JST PNIRP-03V-S connector
 | Manufacturer | JST |
| Manufacturer part number | PNIRP-03V-S | |
| Product Description | CONN SOCKET HSG 3POS 2.00MM,3 Rectangular Connector - Shell Receptacle Natural 0.079" (2.00mm) |
JST connector - Provide product attributes for JST PNIRP-03V-S connector
| Type | Describe |
| Category | Connector, interconnect device |
| Rectangular connector | |
| Rectangular connector housing | |
| Manufacturer | JST Sales America Inc. |
| Series | PNI |
| Connector type | socket |
| Contact type | Mother socket |
| Needle count | 3 |
| Spacing | 0.079"（2.00mm） |
| Row number | 1 |
| Pai ju | - |
| Installation type | Free suspension |
| Terminal end connection | Soldering |
| Fastener type | Register socket |
| Color | Natural |
| Feature | - |
| Insulating material | Polybutylene terephthalate (PBT), glass fiber reinforced |
| Operating Temperature | -25°C ~ 85°C |
| Note | Contactless |
JST connector - Provides product introduction of JST PNIRP-03V-S connector series
JST PNIRP-03V-S is a rectangular connector housing for the PNI series introduced by JST Sales America Inc., suitable for precision signal transmission applications in a variety of electronic devices. The product is a 3-position female receptacle with a 2.00mm (0.079") spacing single-row design, compact in structure, and suitable for use in devices with limited space.
This connector supports a free-hanging installation method and is equipped with a locking bracket to ensure a firm and reliable connection, preventing loosening or detachment, thereby enhancing safety in use. The terminal connection method is crimping, which helps to accelerate assembly speed and improve production efficiency.
The shell is made of natural color glass fiber reinforced polybutylene terephthalate (PBT) material, which has excellent mechanical strength and heat resistance. The operating temperature range is from -25°C to +85°C, suitable for various industrial and consumer electronics environments. The PNIRP-03V-S is a connector shell solution that combines compactness, durability, and reliable connection, widely used in automation control, household appliances, and industrial equipment.
JST Connector - Provides JST PNIRP-03V-S connector documentation and media:
| Resource type | Link |
| Specification Sheet | PNI Connector Datasheet |
JST connector - Providing genuine JST PNIRP-03V-S connector and its alternative product specifications:
We focus on the supply of (JST) brand connectors, committed to providing high-quality and reliable connection solutions for our customers. Our products include genuine products and high-performance alternatives, which have been strictly tested to ensure stability and efficiency. Welcome to contact us through the contact information below the document page!
