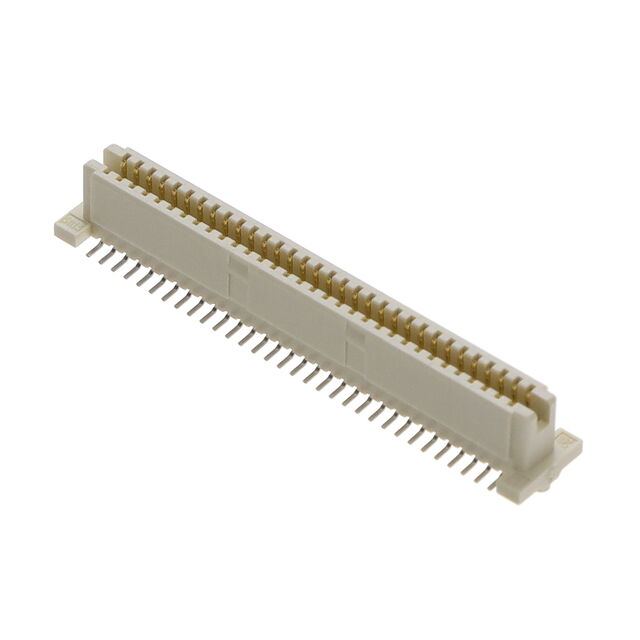

KYOCERA 245015064100863 Connector Product Overview:
 | Manufacturer | KYOCERA |
| Manufacturer part number | 245015064100863+ | |
| Product Description | BOARD TO BOARD, 64 POSITION CONNECTOR RECEPTACLE, HOUSING CONTACT SURFACE MOUNT TYPE GOLD PLATED |
KYOCERA 245015064100863 connector product attributes:
| Type | Description |
| Category | Connector, interconnect device |
| Rectangular connector | |
| Array, edge-type, sandwich-type (board-to-board) | |
| Manufacturer | KYOCERA AVX |
| Packaging | Coil (TR) |
| Connector type | Outlet, outer casing contact |
| Needle count | 64 |
| Spacing | 0.039"（1.00mm） |
| Row number | 2 |
| Installation Type | Surface Mount Device |
| Feature | Pallet guide track, picking and placing |
| Touch head surface treatment | Gilded |
| Combined stacking height | 8mm，10mm，13mm，15mm |
| Board height | 0.220"（5.59mm） |
KYOCERA 245015064100863 Connector Product (Series) Introduction:
KYOCERA AVX introduces a 64-pin outer shell contact socket, a high-reliability rectangular board-to-board connector suitable for industrial and communication applications requiring high density and large current carrying capacity. The connector features a 1.00mm pitch double-row design and supports multiple mating stack heights (8mm, 10mm, 13mm, 15mm), providing flexible choices for different structural requirements. The product is surface mountable, equipped with board guide and pick-and-place functions to enhance automation assembly efficiency and accuracy. The socket contacts are gold-plated, offering excellent conductivity and corrosion resistance, ensuring long-term stable connections. The height on the board is 5.59mm, suitable for circuit designs with medium to high structural stacking. The connector is packaged in a roll (TR), fully compatible with SMT surface mount technology, and widely applicable in fields with high requirements for connection reliability and structural flexibility, such as industrial control equipment, communication base stations, and embedded systems.
KYOCERA 245015064100863 Connector Documentation and Media:
| Resource type | Link |
| Specification Sheet | 5015 Series Datasheet |
