Categorization：Brand Connector
Compatible/Replaces Panasonic | AXK6F20347YG The board-to-board connector is a 0.5mm pitch, 1.5mm to 2.5mm combined height, 20-position connector head, center contact strip, surface mount type, gold plated. Panasonic The P5Kx narrow pitch connectors provide board-to-board connections from 3.0mm to 9.0 Plug height version of mm. The P5Kx connector is highly resistant to harsh environments and has a long latitude mating length. The connector also has the suction area of a suction automatic placement machine. Its main features: 1, rich product line-ups. 2、 "TOUGH" adaptable to various environment CONTACT "construction.". The 3、 uses the simple locking organization, the good insertion tactility. And that effective combine length of the 4、 reaches 0.55mm. 5、 for mobile devices, industrial equipment [Panasonic | Panasonic | axk6f20347yg board-to-board connector replacement available on wto.com]
------------------------------------------------------------------------------------------------
1、 Compatible/Replaces Panasonic | AXK6F20347YG Board-to-Board Connectors Product Specification Details:
| Model | AXK6F20347YG |
| Connector type | Substrate-to-substrate, substrate-to-FPC |
| By category | 2-piece type (socket) |
| Socket/plug | Plug |
| Use | Mobile equipment, industrial machines |
| Terminal spacing (mm) | 0.5 |
| Number of cores | 20 |
| Combined height (mm) | 1.5mmm/2.0mm |
| Packaging method | Packaging tape and plastic reel packaging |
| Packing quantity/inner box | 2,000 PCs (1 reel) |
| Packing quantity/outer carton | 4,000 |
| Device for enhancing welding performance (with or without) | None |
| Position the struts | None |
| Body length (L mm) | 8 |
| Body height (H mm) | 1.25 |
| PIN size (D mm) | 3.3 |
| Recommended processing size width of base plate (mm) | 4.3 |
| Rated current | 0.5A/terminal (the total number of all cores is less than 10 A) |
| Withstand voltage | AC150V for 1 minute |
| Insulation resistance (above MΩ) (initial) | 1000 |
| Contact resistance (mΩ or less) | 90 |
| Plug life (times) | 50 |
| Material (molding resin name) | Heat resistant resin (UL94V-0) |
| Material (terminal/metal terminal) | Copper Alloy |
| Surface treatment material (terminal/metal terminal) | The bottom layer is plated with Ni, and the surface layer is plated with Au |
------------------------------------------------------------------------------------------------

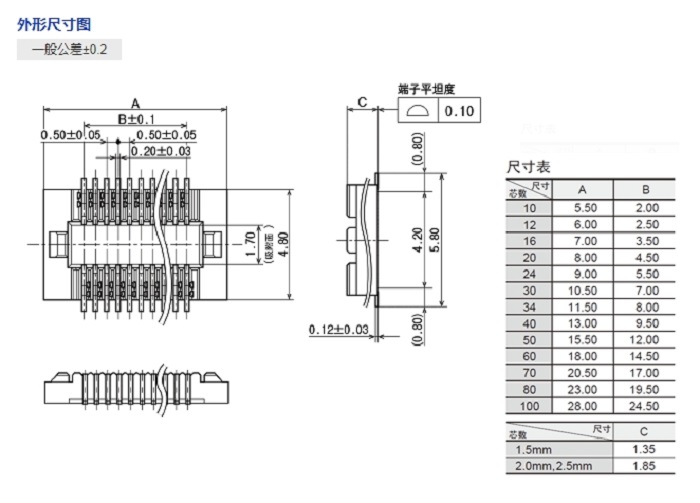

2、 Compatible/Replaces Panasonic | AXK6F20347YG Board-to-Board Connectors Datasheet:
------------------------------------------------------------------------------------------------
3、 Compatible/Alternative Panasonic | AXK6F20347YG Board-to-Board Connectors Part Number/Model List:
| AXK6F10347YG | AXK6F12347YG | AXK6F16347YG | AXK6F20347YG | AXK6F24347YG |
| AXK6F30347YG | AXK6F34347YG | AXK6F40347YG | AXK6F50347YG | AXK6F60347YG |
| AXK6F70347YG | AXK6F80347YG | AXK6F10547YG | AXK6F12547YG | AXK6F16547YG |
| AXK6F20547YG | AXK6F24547YG | AXK6F30547YG | AXK6F34547YG | AXK6F40547YG |
| AXK6F50547YG | AXK6F60547YG | AXK6F70547YG | AXK6F80547YG |
------------------------------------------------------------------------------------------------
4、 Board-to-Board Connectors-a compatible Panasonic | AXK6F20347YG board-to-board connector replacement is available
