Panasonic Connectors - Provides an overview of Panasonic AXT440124 Connector products:
 | makers | Panasonic |
| Manufacturer's Code | AXT440124 | |
| Product Description | CONN HDR 40POS SMD GOLD, 40 pos Connector Header, Center Contact Strip Surface Mount Gold Plated |
Panasonic Connectors - Offers Panasonic AXT440124 connector product attributes:
| typology | descriptive |
| form | Connectors, Interconnects |
| Rectangular connectors | |
| Array, Edge-Type, Mezzanine (Board-to-Board) | |
| makers | Panasonic |
| range | P4S |
| Connector Type | Connector, Center Contact Strip |
| pin position | 40 |
| spacing | 0.016"（0.40mm） |
| number of sets (of clothes, etc.) | 2 |
| Installation type | Surface Mount |
| characterization | fixed brackets |
| Contact surface treatment | gilt |
| Contact surface treatment thickness | - |
| Splice Stack Height | 1.5mm，2.5mm |
| board height | 0.049"（1.25mm） |
| Basic Product Number | AXT440 |
Panasonic Connectors - Offers Panasonic AXT440124 Connector product (series) profiles:

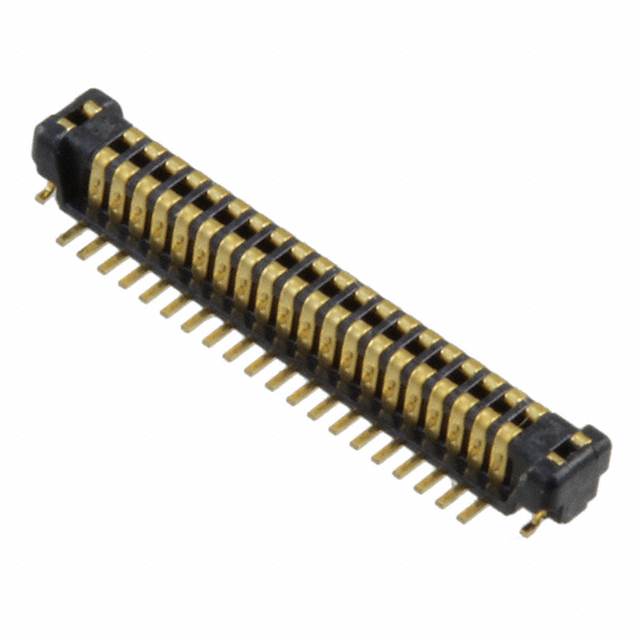

The Panasonic AXT440124 is a high-precision board-to-board connector featuring a 40-position dual-row design with a pitch of only 0.4mm for high-density circuit layouts. The connector features a central contact strip structure to ensure reliable signal transmission and supports 1.5mm and 2.5mm mating stack heights to meet different application requirements.The AXT440124 is surface mount (SMD), which is suitable for automated production and improves assembly efficiency. Its gold-plated contacts reduce contact resistance and enhance oxidation resistance, improving durability and signal integrity. In addition, the connectors are equipped with a fixed solder tail design to enhance solder strength and improve vibration resistance, making them more stable and reliable. The product is widely used in industrial control, consumer electronics, communication equipment and other fields, especially suitable for precision electronic equipment with high space and signal integrity requirements.
Panasonic Connectors - Provides Panasonic AXT440124 connector documentation and media:
| Resource type | link (on a website) |
| specification | Please contact the contact person at the bottom of the article page for a copy |
Panasonic Connectors-Provide description of Panasonic AXT440124 Connector Genuine|Replacement:
We specialize in the stock supply of (Panasonic) brand connectors and are committed to providing customers with quality and reliable connection solutions. Our products include genuine and high performance alternatives, which have been rigorously tested to ensure stability and efficiency. Please feel free to contact us through the contact information below the document page!
