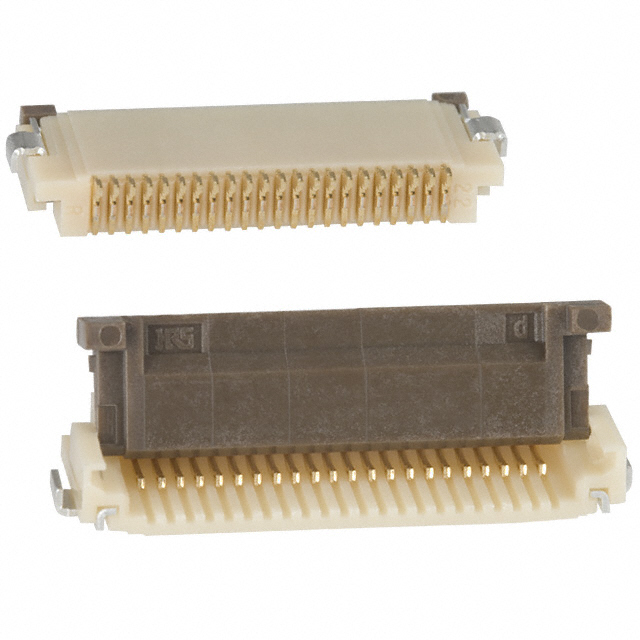

Hirose FH12-22S-0.5SH(55) Connector Product Overview:
 | makers | Hirose |
| Manufacturer's Code | FH12-22S-0.5SH(55) | |
| Product Description | CONN FFC BOTTOM 22POS 0.5MM R/A, 22 pos FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle |
Hirose FH12-22S-0.5SH(55) Connector Product Attributes:
| typology | descriptive |
| form | Connectors, Interconnects |
| FFC, FPC (Flat Flexible) Connectors | |
| FFC, FPC (Flat Flexible) Connector Assemblies | |
| makers | Hirose Electric Co Ltd |
| range | FH12 |
| wrap | Tape and Reel (TR) |
| Flat flexible type | FFC，FPC |
| Installation type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| pin position | 22 |
| spacing | 0.020"（0.50mm） |
| nock (of a bow) | soldered |
| FFC, FCB Thickness | 0.30mm |
| board height | 0.079"（2.00mm） |
| lockout function | trigger lock |
| Cable End Type | rectangular |
| Contact Material | phosphor bronze |
| Contact surface treatment | gilt |
| Housing Material | Polyamide (PA), Nylon |
| Actuator Materials | Polyphenylene sulfide (PPS) |
| characterization | Zero Insertion Force (ZIF) |
| rated voltage | 50V |
| operating temperature | -40°C ~ 85°C |
| Material flammability rating | UL94 V-0 |
| Rated current (amps) | 0.5A |
| Housing Color | rice-colored |
| Actuator Color | yellow-brown |
| Number of mating times | 20 |
Hirose FH12-22S-0.5SH(55) Connector Product (Series) Description:
The Hirose Electric FH12 series FFC/FPC connectors are a high-performance, compact board-to-wire connection solution designed for flexible flat cable (FFC) and flexible printed circuits (FPC). The 0.5mm pitch, 22-pin design supports surface mount, right-angle mounting for space-constrained electronics applications.The FH12 series connectors utilize a zero insertion force (ZIF) construction with a trigger-locking mechanism that ensures a robust connection and simplifies assembly. The phosphor bronze gold-plated contacts provide excellent electrical conductivity and corrosion resistance, and the polyamide (PA) shell has a UL94 V-0 flame retardant rating to ensure safety. The connectors support 0.30mm thickness FFC/FPC, are rated at 50V and 0.5A, and can operate stably in environments ranging from -40°C to 85°C, meeting the needs of demanding industrial and consumer electronics applications. Widely used in portable electronic devices, industrial control systems, medical equipment and automotive electronics, this series of products is an ideal FFC/FPC connection solution due to its high reliability and ease of use.
Hirose FH12-22S-0.5SH(55) Connector Documentation and Media:
| Resource type | link (on a website) |
| specification | FH12 Series |
Hirose FH12-22S-0.5SH(55) Connector Genuine|Replacement Description:
We specialize in stocking (Hirose) brand connectors and are committed to providing our customers with high quality, reliable connectivity solutions. Our products include genuine and high-performance alternatives that are rigorously tested to ensure stability and efficiency. Please feel free to contact us through the contact information below the documentation page!
