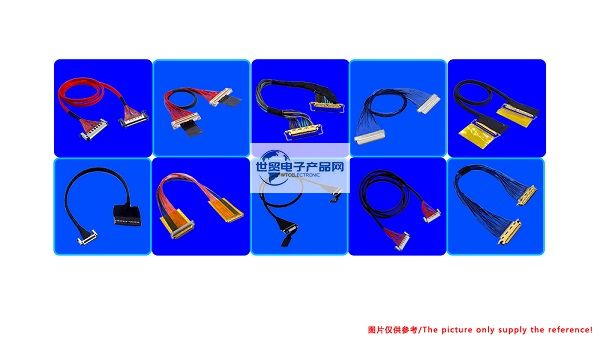

I-PEX20878-040T-01 Extremely Thin Coaxial Harness is a CABLINE ® -UM/2878 series manufactured by I-PEX with the material number of 20878 -040T-01 | contact spacing: 0.4mm Extremely Thin Coaxial Connector and compatible AWG: # 38 # 40 # 42 # 44 # 46 is a wire harness product assembled through a unique production process. Our company (World Trade Electronic Products Network) specializes in the production of ultra-thin coaxial wire harnesses-I-PEX20878-040T-01 | 0.4mm spacing | # 38- # 46 ultra-thin coaxial wire harness. The following picture shows the ultra-thin coaxial wire harness (Micro) produced by our company. Some pictures of Coaxial Cable harness assembly products (pictures are for reference only).

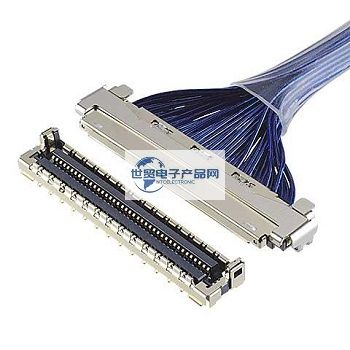

1、 20878-040T-01 | 0.4mm pitch | 38awg-46awg | Connector schematic diagram, specifications and features used for very thin coaxial harness:
| 0.4 mm pitch, 90 degree outgoing vertical plug type very thin coaxial line connector with EMC shielding and mechanical locking |
| The ZenShield ® is fully shielded and grounded at multiple points to prevent EMI leakage |
| Mechanical boot provides high fit retention |
| High contact reliability |
| Contact spacing (mm): 0.400 |
| Height: 2.35 Max (2.20 Nom.) , |
| Number of Pins available: 30 40 60 |
| AWG: # 38 # 40 # 42 # 44 # 46 |
| Chimera Type: Vertical |
-------------------------------------------------------------------------------------------------

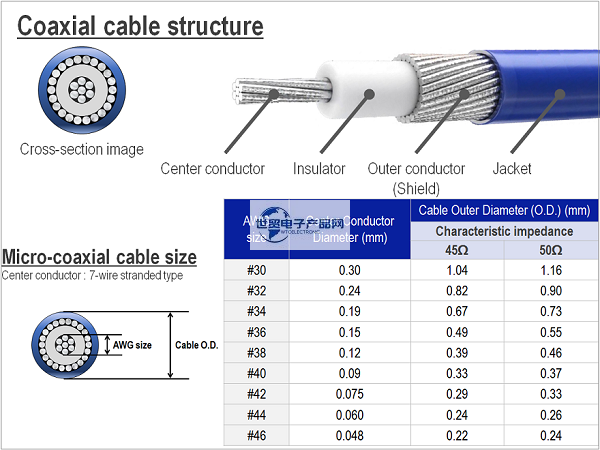

2、 I-PEX20878-040T-01 | 0.4mm Pitch | 38awg-46awg | Schematic diagram and specifications of very thin coaxial wire used for very thin coaxial wire harness:
-------------------------------------------------------------------------------------------------
3、 that the ultra-thin coaxial wire harness produced by our company uses the material number or model of the ultra-thin coaxial wire connector of I-PEX Company as follows:
| 20907-005E-01 | 20907-010E-01 | 20847-020T-01 | 20847-030T-01 | 20847-040T-01 |
| 20680-020T-01 | 20680-030T-01 | 20680-040T-01 | 20680-050T-01 | 20680-060T-01 |
| 20878-030T-01 | 20878-040T-01 | 20634-210T-02 | 20634-112T-02 | 20634-120T-02 |
| 20634-130T-02 | 20634-140T-02 | 20634-150T-02 | 20634-160T-02 | 20454-220T |
| 20454-230T | 20454-240T | 20454-250T-01 | 20777-030T-01 | 20777-040T-01 |
| 20532-030T-02 | 20532-034T-02 | 20532-040T-02 | 20532-050T-02 | 20974-040T-01 |
| 20373-R10T-06 | 20373-R14T-06 | 20373-R20T-06 | 20373-R30T-06 | 20373-R32T-06 |
| 20373-R35T-06 | 20373-R40T-06 | 20373-R50T-06 | 20497-026T-30 | 20497-032T-30 |
| 20497-040T-30 | 20497-050T-30 | 20473-030T-10 | 20473-040T-10 | 20346-010T-32R |
| 20346-015T-32R | 20346-020T-32R | 20346-025T-32R | 20346-030T-32R | 20346-035T-32R |
| 20346-040T-32R | 20438-030T-01 | 20438-040T-01 | 20438-050T-01 | 20320-R30T-11 |
| 20320-R40T-11 | 20320-050T-11 |
-------------------------------------------------------------------------------------------------
4、 How to buy or learn about I-PEX20878-040T-01 | 0.4mm Pitch | # 38- # 46 Very Thin Coaxial Harness Assembly Products? ：
