The miniaturization connection needs for high-performance equipment make extremely fine coaxial cable assemblies a key component for high-speed signal transmission.With the continuous development of drones, intelligent terminals, industrial equipment, and high-performance computing equipment towards lightweight, miniaturization, and high integration, there is a higher requirement for high-speed signal transmission cables within the equipment. Traditional cables, due to their large volume, high weight, and limited anti-interference capability, are no longer able to meet the design needs of the new generation of precision equipment. On the other hand, ultra-fine coaxial cables, with their ultra-thin wire diameter, high shielding performance, stable impedance control, and excellent high-speed signal transmission capabilities, are gradually becoming an important solution for internal connections in high-end electronic equipment.
According to the I-PEX CABLINE®-VS II series product information, I-PEX 81619-100B-02-D belongs to the CABLINE-VS II 20Pin Micro-Coaxial Harness (extremely thin coaxial harness) product. It adopts a 20 Pin high-density connection design, with the matching wire end connector model being 20847-020T-01. This connector supports matching AWG #40 extremely thin coaxial wire. This solution is suitable for internal connections of electronic devices with limited space, high-speed transmission, and high requirements for signal integrity.
As a professional ultra-fine coaxial cable assembly manufacturer, our company can provide a compatible alternative cable assembly solution for I-PEX 81619-100B-02-D. We can offer customized manufacturing services for high-reliability Micro-Coaxial Cable Assembly (ultra-fine coaxial cable assembly) based on customers' equipment structure, signal transmission requirements, and connector specification needs.
Secret Application of Extremely Fine Coaxial Cable Bundles in Drones: Supporting Flight Control, Image and High-Speed Data Transmission SystemsIn the unmanned aerial vehicle field, extremely thin coaxial cables play a crucial role in many connections that are not directly visible to users but are essential for the performance of drones. Modern drones integrate high-definition camera systems, gimbal control systems, flight control modules, radar sensors, image processing units, and high-speed communication modules. These modules require a large amount of high-speed, stable, and anti-interference data connections, and the extremely thin coaxial cables are the important internal connection media for these systems.
For instance, ultra-fine coaxial cables can be used for transmitting high-speed image data between the drone's high-definition camera and the main control processor, ensuring data stability during the 4K/8K video acquisition, real-time image recognition, and the operation of AI vision algorithms; in the gimbal system, ultra-fine coaxial cables can meet the flexible connection requirements in narrow spaces while reducing the cable load in the movement mechanism; between the flight control system and the sensor module, the ultra-fine coaxial structure can effectively reduce electromagnetic interference, improving the reliability of attitude control, positioning navigation, and environmental perception systems.
Due to the extremely limited internal space of drones, and the strict requirements for weight, endurance, and stability, the I-PEX CABLINE-VS II 20Pin ultra-thin coaxial cable harness solution has obvious application advantages. Its 0.5mm Pitch level connection structure, high-density Pin quantity, and AWG #40 ultra-thin coaxial material matching capability can help engineers achieve a more compact and lightweight internal wiring design.
III- I-PEX 81619-100B-02-D selection, compatibility, and alternative solutions reference and recommendationsEngineers and procurement personnel involved in the development of drones, intelligent devices, high-speed display modules, or internal connection solutions for industrial equipment need to pay close attention to factors such as connector matching, wire specifications, cable length, pin quantity, and high-speed signal performance when selecting ultra-fine coaxial cable assemblies.

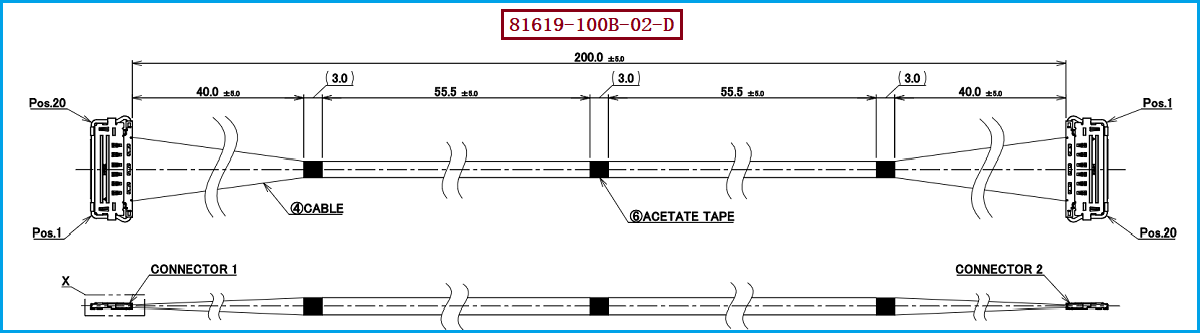

The core configuration of I-PEX 81619-100B-02-D is: 20Pin CABLINE-VS II ultra-thin coaxial cable assembly structure, with wire end connectors using 20847-020T-01, compatible with AWG #40 Micro-Coaxial Cable (ultra-thin coaxial cable). If the device end has already adopted a similar CABLINE-VS II 20Pin interface design, it can prioritize compatible development based on this specification during domestic substitution or supply chain optimization.
For the engineering verification phase, it is recommended to confirm the following key parameters: whether the connector interface size is consistent, whether the cable length meets the equipment installation requirements, whether the impedance of the ultra-fine coaxial cable meets the high-speed signal requirements, and whether the shielding layer treatment meets the EMC requirements. At the same time, when procurement personnel are looking for alternative suppliers, they should focus on whether the manufacturer has the ability to strip ultra-fine coaxial cables, precision terminal processing, automated assembly, and reliability testing.
Our company can provide a compatible alternative cable harness solution for I-PEX 81619-100B-02-D, supporting cable length adjustment, connector matching, AWG specification selection, and mass production manufacturing according to customer requirements. We offer a stable and reliable domestic supply option for drone, intelligent equipment, and high-end electronic product customers.
Four, high-precision thin coaxial cable assembly manufacturing capability, providing reliable connection guarantee for high-speed intelligent equipmentExtremely fine coaxial cable bundles are compact in size, but their manufacturing process involves high-precision processing technology, including micro coaxial stripping, shielding layer treatment, terminal crimping, connector assembly, and electrical performance testing, among many key steps. Any detail in the process can affect the stability of high-speed signal transmission, so professional manufacturing experience and a strict quality control system are required.
Our company can provide compatible alternative development and mass manufacturing services for the I-PEX CABLINE-VS II series application requirements, surrounding the I-PEX 81619-100B-02-D ultra-fine coaxial cable assembly. This meets the needs of customers for high-density, high-reliability, and miniaturized connection solutions. Whether it is an unmanned aerial vehicle visual system, high-speed camera module, industrial equipment control module, or other intelligent terminal products, they can enhance product performance and supply chain flexibility through customized ultra-fine coaxial cable assembly solutions.
In the future, as the intelligence level of drones continues to improve, and with the rapid development of AI vision, high-speed communication, and automatic control technology, ultra-fine coaxial cable assemblies will play a crucial role inside more high-end equipment. Choosing ultra-fine coaxial cable assembly suppliers with professional manufacturing capabilities will help enterprises achieve product performance improvement and optimize the domestic substitution of supply chains.
I-PEX 81619-100B-02-D represents the product of the CABLINE-VS II series 20Pin ultra-thin coaxial cable assembly, with its high-density connection, miniaturized structure, and AWG #40 high-speed ultra-thin coaxial transmission capability, it can meet the needs of drones and high-performance electronic equipment for lightweight, high-speed, and high-reliability connections. I am
[3W Electronic Components Network]In the field of ultra-fine coaxial cable bundles, we have mature production and engineering R&D experience, and can assist with model matching and structural substitution. For inquiries, please contact:
Manager Zhang 18913228573 (WeChat same number)Our company has the research and development and manufacturing capabilities of extremely fine coaxial cable束, and can provide corresponding compatible alternative solutions to help customers achieve high-quality and high-reliability domestic cable supply.
