I-PEX 82448-100B-02-D product introduction: CABLINE-UY series high-density miniature coaxial connection solutionUnder the trend of continuous development towards lightweight, high integration, and high-speed data transmission in modern electronic devices, the internal wiring harnesses of the devices not only need to have a small size structure but also need to meet the requirements of high-speed signal transmission, anti-electromagnetic interference, and long-term stable operation. The CABLINE-UY series miniature coaxial cable harness components launched by I-PEX have been optimized for high-density, small space application environments, providing a reliable solution for high-speed internal connections in electronic devices.

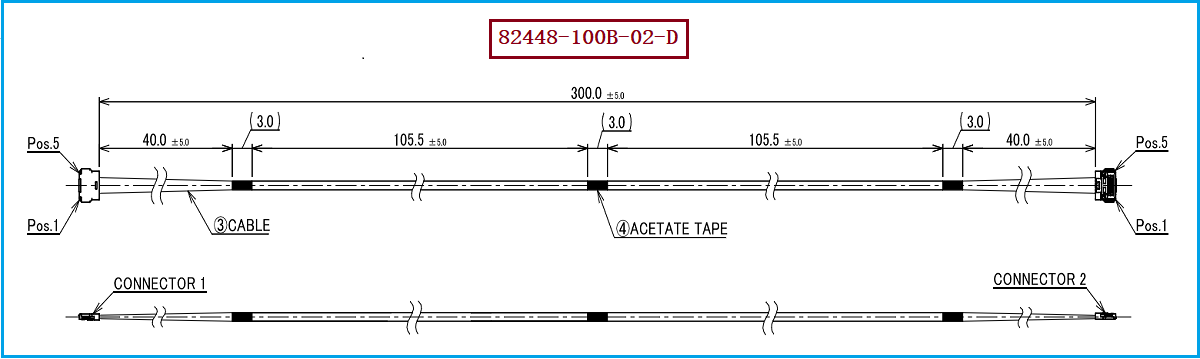

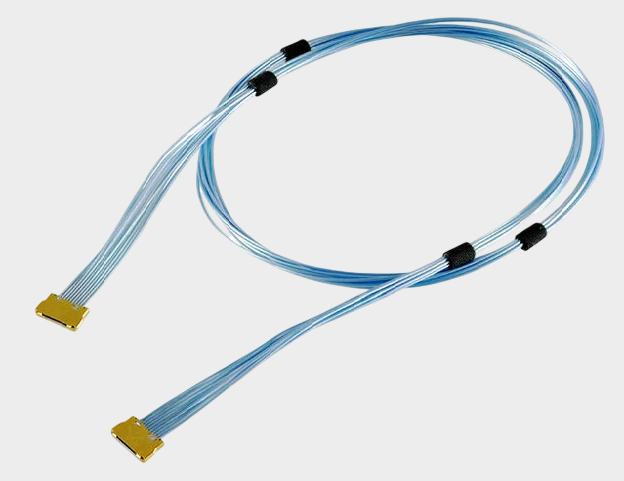

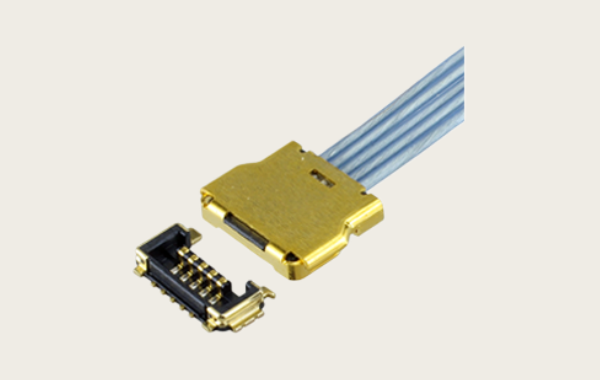

I-PEX 82448-100B-02-D is a 5Pin Micro Coaxial Harness (微型同轴线束组件) from the CABLINE-UY series. It uses precision connectors with a micro coaxial cable structure to reduce signal loss through optimized signal transmission paths, improving system stability. The product has the characteristics of small size, light weight, and reliable connections, suitable for applications with high requirements for space layout and signal performance, such as industrial equipment, machine vision, display systems, medical electronics, intelligent terminals, and automation equipment.
Product Features and Application Fields of 82448-100B-02-DThe I-PEX CABLINE-UY series is mainly designed for high-speed, high-reliability connection requirements, and the 82448-100B-02-D has the following technical advantages:
Miniaturized design, saves installation space
The product adopts a compact connection structure, which can effectively reduce the space occupied by the device internally, providing support for the realization of slim and lightweight design of terminal products.
●Micro Coaxial Transmission Structure
High-speed signal transmission can be achieved through miniature coaxial cables, which can reduce the impact of external interference and improve data transmission stability.
Excellent shielding performance
The coaxial cable itself has good electromagnetic shielding ability, suitable for electronic devices with high requirements for EMI control.
●Excellent mechanical connection performance
The precise terminal structure ensures connection stability, suitable for long-term operation and complex working environment applications.
●Support customized harness development
The harness length, routing method, and connection configuration can be adjusted according to different equipment requirements to enhance design flexibility.
The series of cable assemblies is widely used in fields such as industrial cameras, machine vision detection equipment, intelligent manufacturing systems, display devices, medical instruments, and embedded electronic products.
Selection, compatibility, and alternative solution reference and suggestionsFor projects using I-PEX CABLINE-UY series cables, customers typically need to consider product lead time, procurement costs, and long-term supply stability during product upgrades, bulk purchasing, or supply chain optimization. Therefore, selecting a compatible alternative with matching performance becomes an effective way to enhance project reliability.
In response to I-PEX 82448-100B-02-D, our company can provide a compatible and alternative cable harness solution for I-PEX 82448-100B-02-D. We match the design based on the original product's interface specifications, electrical parameters, cable structure, and actual installation environment, helping customers to achieve quick replacement and stable application.
Compatibility and alternative selection recommendations should focus on the following contents:
Connector specifications confirmation: Ensure that the alternative product is consistent with the original model in terms of interface structure, Pin quantity, and connection method.
2. Signal transmission requires confirmation: Select the appropriate Micro Coaxial cable specification according to the equipment transmission rate requirements.
Ensure harness structure: Optimize the length of wires, bending direction, and exit method in combination with the internal space of the equipment.
4. Reliability Test Verification: Verify the reliability of the alternative solutions through methods such as conductivity testing, signal testing, and mechanical performance testing.
Ensure that suppliers have the capabilities for sample development, rapid response, and mass delivery.
Our company specializes in the research and development and manufacturing of precision wiring harnesses, and can provide compatible and alternative harness solutions for models such as I-PEX 82448-100B-02-D, I-PEX 82859-100B-02-D, etc. We offer one-stop services from product selection, sample production to mass production, helping customers reduce supply risks and enhance product competitiveness.
Four, reliable connections help intelligent devices upgradeI-PEX 82448-100B-02-D serves as a 5Pin miniature coaxial cable assembly in the CABLINE-UY series, with its miniaturized structure, high-speed transmission capability, and excellent reliability, meeting the demand for high-performance internal connections in modern electronic devices.
